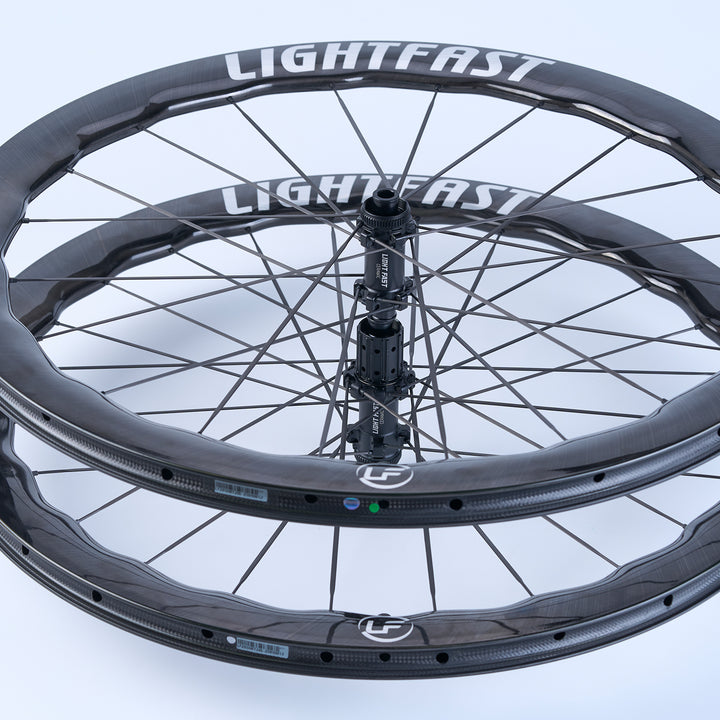

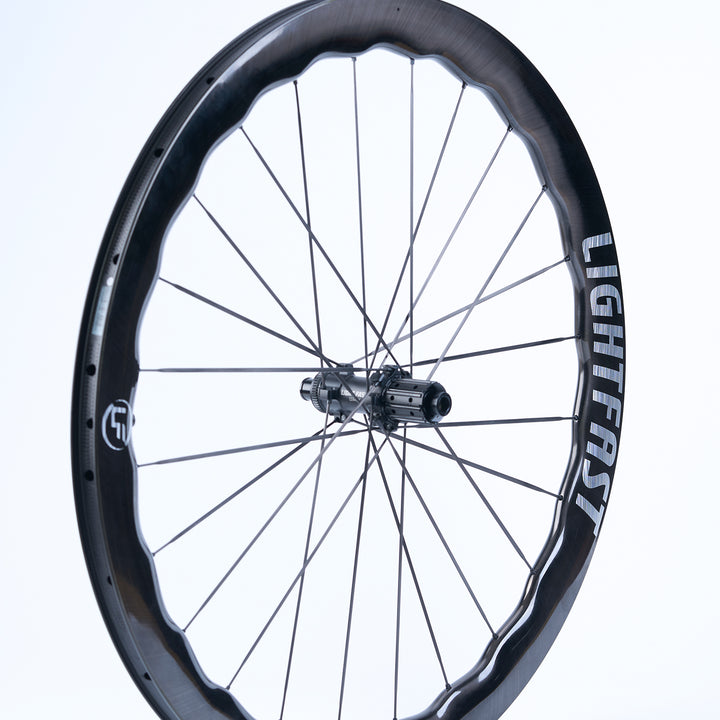

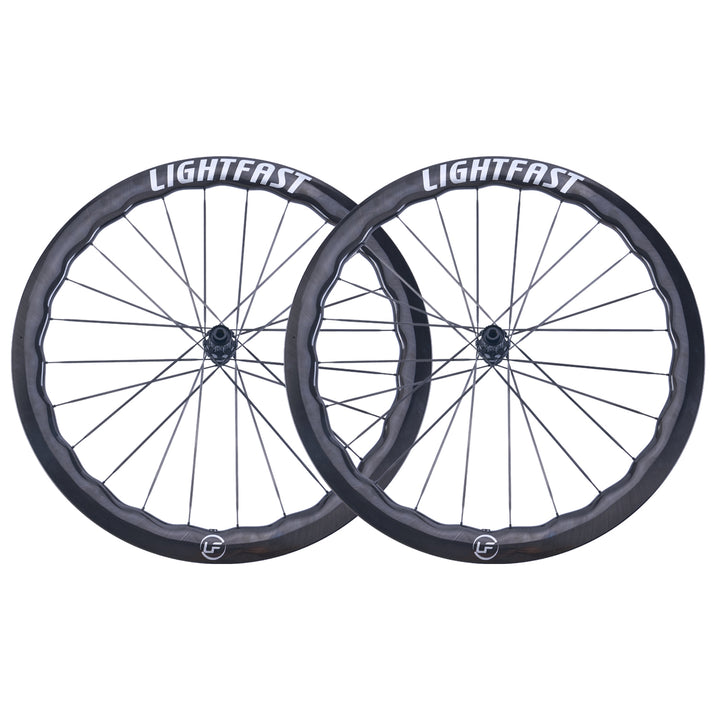

LightFast Ultra Light Carbon Spoke Wheelset-LF CSA Big Wave Disc Brake

The complete set of LF CSA BIG WAVE of 4550mm depth with Lightfast Hub only weight 1203±30g while at least 1460±30g or more for same spec.of other brands. Reduce the weight of the wheelset while increasing rigidity.

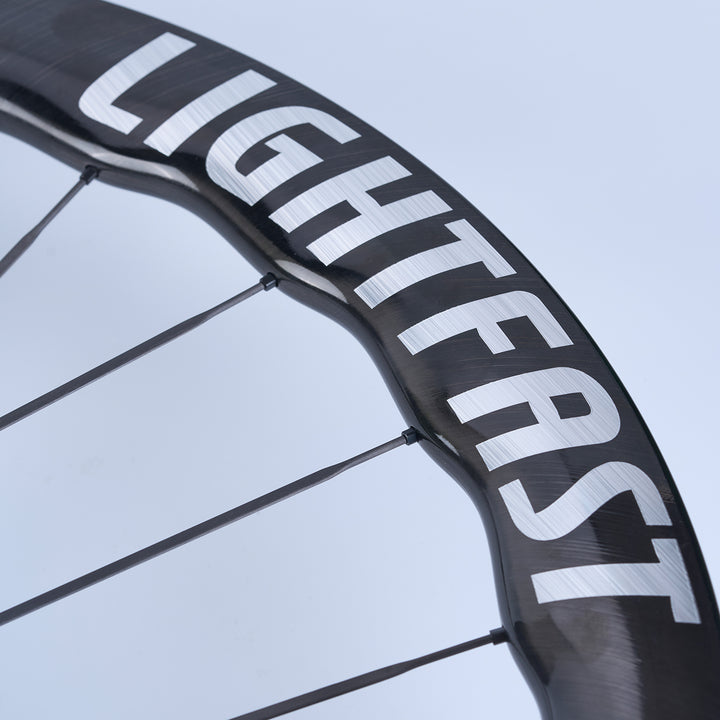

The LF CSA BIG WAVE features silver decals to represent the nobility and high-end of the Lightfast wheelset.

LF CSA BIG WAVE uses  Aero-grade Toray T1000 carbon fiber materials, precision braiding and high temperature molding to create the ultimate lightweight wheelset .
Every gram of weight reduction is to make you ride faster,farther and easier.

LF CSA BIG WAVE Carbon rim width with 21mm inner/ 28mm outer width, U-shaped and wind-breaking design carbon spoke wheelset, better cruising ability and faster acceleration; Rim top depth is 50mm ,Rim bottom depth is 45mm;

LF CSA BIG WAVE Hub System: Lastest Technical Ratchet System, 45T or 54T can be optional; The Lightfast hub continue to offer full power for cyclists;

LF CSA BIG WAVE uses ultra light carbon Spoke: Each carbon spoke about 2.8g/pc without nipple; Lightfast carbon spokes is lighter than super Sapim CX-Ray by at least 20%-28%, carbon spokes combines the features of excellent aerodynamics with low weight and great strength;

LF CSA BIG WAVE Tyre Compatibility: Compatible with regular clincher tyres with innertubes and tubeless -ready tyres from leading manufacturers. From 25-43C tyre;
the best recommand are 25C or 28C type.

LF CSA BIG WAVE High-speed CNC machine to drill all the holes on rims so they are uniform. The spoke and nipple access holes are drilled simultaneously so they match perfectly with precise angles.

LF CSA BIG WAVE Rider weight limited attention: Lightfast Wheelsets have a maximum weight capacity of 110-120kgs (including Bike&Rider & Personal belongings ).

LF CSA BIG WAVE Rim surface is Paint free ; We have achieved the lightest weight without reducing any stiffness. You will find lightness and stiffness perfectly;

Weight of LF CSA BIG WAVE:

1. LF CSA BIG WAVE Carbon rim width with 21mm inner/ 28mm outer width, Rim top depth is 50mm ,Rim bottom depth is 45mm ;

2. LF CSA BIG WAVE Tubeless-ready hooked rim supports tubeless tyres from 25-43C; Support clincher tyres also ;

3. LF CSA BIG WAVE compatible with Tyre of Schwalbe Pro One and Continental GP5000 TL etc;

LightFast CSA BIG WAVE SPECIFICATIONS

Spokes: Super Carbon Spoke

Lightfast Carbon Spoke is one of the spokes who got the best results in fatigue test. Lightfast Carbon spokes lighter than super Sapim CX-Ray by 20% Its unique strength and flexibility make it suitable for most cyclists in the market.

Specifications:

Carbon Spoke with excellent strength.

Front Wheels: 2X/Radial(2:1) spoke lacing on front wheels;

Rear Wheels: 2X/Radial(2:1)  spoke lacing on rear wheels

Carbon spokes is lighter than super Sapim CX-Ray by 20%-28%.

Aerodynamic profile for decreased air resistance.

Ratchet system hub: The energy soul of wheelsets

The hub is the energy soul of carbon fiber wheelset. LF CSA BIG WAVE series use the latest  hubs with Ratchet System- 45T or 54T ratchet system.

Not matter for 45T ratchet system or for 54T ratchet system ,the hubs will continue to offer Reliability, efficiency and light-weighted to each cyclist.

Specifications:

Supplied with standard Shimano compatible 11s and 12s freewheel body.

SRAM XDR and Campagnolo also available for different client's request.

Compatibility: Disc brake versions compatible with F:12x100 R:12x142 thru-axles.

Aero or Lightweight? We have both.

Lightfast wheelsets have good aerodynamic performance with light weight.  21mm inner/ 28mm outer width, and U-shaped wind-breaking wheelset, better cruising ability and faster acceleration. Compatible with regular clincher tyres with inner tubes and tubeless -ready tyres from leading manufacturers.
